The adoption of modern cranes equipped with smart systems is making lifting operations more efficient, precise, and safe. Smart cranes are capable of monitoring their own performance, identifying potential issues in real time, and optimizing their settings automatically for better load distribution and performance.

Integrating smart systems in modern cranes enhances the crane operation and makes the cranes safer than ever before. With smart systems, it is possible to track critical data such as load weight, crane speed, and structural health in real-time. These systems ensure that the crane operates within safe limits and can automatically shut down or alert operators if a potential issue is detected.

Some of the smart systems that are trending in the crane industry for safe and efficient crane operation are:

Load Monitoring and Optimization Systems

Load monitoring and optimization in cranes involve ensuring cranes operate safely and efficiently by precisely measuring and controlling the weight of lifted loads. This is achieved through various systems that monitor load parameters in real-time, preventing overloads and accidents, while also optimizing crane operations for better productivity and cost-effectiveness. These systems typically consist of load cells, sensors, and a control unit that collects and analyzes data.

One of the main benefits of crane load monitoring control systems is their ability to prevent accidents. These systems can detect overloads, unbalanced loads, and other unsafe conditions, allowing operators to take corrective action before accidents occur. Crane load indicators (CLIs) or Safe Load Indicators (SLIs) alert operators when the load exceeds safe limits, preventing accidents and potential damage to the crane or the load itself.

In addition, crane load monitoring control systems can provide valuable data on crane usage, load patterns, and other factors that can help operators optimize their operations. Data collected by load monitoring systems can also be used for predictive maintenance, identifying potential issues early and reducing downtime.

Anti-Collision Systems

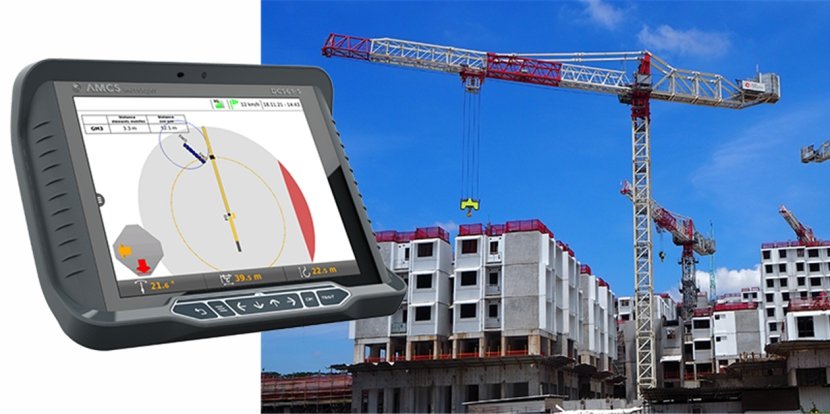

An anti-collision system is a safety mechanism designed to prevent collisions with other cranes, structures, and obstacles on a construction site. These systems utilize sensors and technology to detect potential hazards and either alert the operator or automatically slow down or stop the crane to avoid a collision.

Anti-collision systems typically consist of sensors, control units, and warning devices. Proximity sensors are installed on cranes to monitor the distance between them and object. They use various technologies such as ultrasonic, infrared, or laser to detect nearby objects. The control unit processes the information received from the sensors. When it detects that the crane is approaching any object too closely, it triggers predefined actions to prevent a collision. Upon detecting a potential collision, the system can activate warning devices such as alarms or lights to alert the crane operators. In some advanced systems, the control unit can automatically adjust the crane’s speed or stop its movement to avoid contact.

The primary benefit of anti-collision systems is the significant enhancement of safety in crane operations. By preventing collisions, these systems protect both personnel and equipment from accidents and injuries. With anti-collision systems in place, cranes can operate more smoothly in shared environments. This reduces downtime caused by accidents and ensures that operations run without interruptions improving productivity and operational efficiency.

Area or Zone Control Systems

A crane area control system, also known as a zoning system or no-fly zone system, is a safety technology that restricts crane operation within designated areas. These systems use hardware and software to monitor the crane's position and prevent it from entering restricted zones, enhancing safety on construction sites and preventing collisions.

Operators can define virtual boundaries or "zones" within a workspace where crane operation is restricted or prohibited. Sensors, limit switches, and sometimes GPS technology monitor the crane's position in relation to these zones. When the crane approaches or enters a restricted zone, the system automatically slows down or stops the crane to prevent collisions or accidents. The operator can still move the crane away from the hazard but cannot move it closer, effectively preventing entry into the restricted zone. Modern systems often have a display that shows the crane's position in relation to the zones, providing the operator with a visual representation of the situation.

End Positioning Systems

End positioning systems for cranes allow operators to precisely and automatically place a load within a predefined area. This feature, often combined with sway control, helps operators position loads accurately and quickly, even with limited visibility. The system utilizes a "window" or predefined area, and once the crane is brought near, it automatically navigates the load to the center of that area.

End positioning ensures the load is placed in the center of a defined area with high accuracy, often with millimetre precision. Once the operator brings the crane within the designated "window," the system takes over, automatically moving the crane and load to the final position. This system improves the operation efficiency as it helps the operators to move load faster and more smoothly, especially when operating the crane remotely from the ground.

Anti-Sway Control Systems

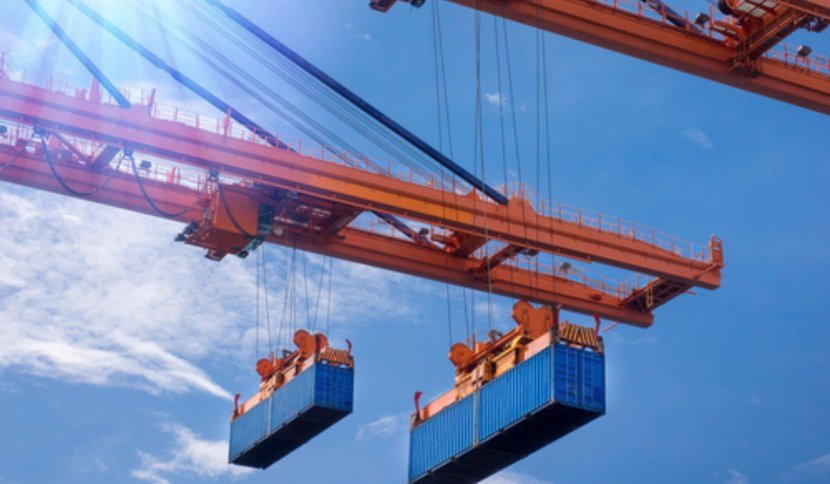

Anti-sway control systems are designed to reduce the swaying motion of loads during lifting and transportation, a common challenge in crane operations. Swaying can lead to safety hazards, operational delays, and damage to both the load and surrounding infrastructure.

Anti-sway systems utilize sensors and algorithms to detect the load’s motion and adjust the crane’s movements accordingly. When a load is lifted, the system predicts the trajectory and applies counteracting motions to stabilize it. This technology is particularly advantageous in environments where precision is crucial and where wind conditions can vary.

The application of anti-sway technology enhances control over loads, significantly reducing the risks associated with load instability. Moreover, anti-sway systems can be integrated with IoT and automated control systems, creating a synergistic effect. Real-time data feeds into the anti-sway algorithms, allowing for even greater precision in load handling. The result is a system that not only prevents swaying but also adapts dynamically to changing conditions.

Snag Prevention System

Snag prevention in cranes involves systems and procedures to avoid accidental snags (sudden obstructions) during lifting operations, which can lead to damage or accidents. These systems typically include features that monitor rope angles, detect unusual resistance, and automatically stop crane movement to prevent damage.

Many crane systems continuously monitor the rope angle or load resistance to detect if a snag has occurred. If the rope angle deviates from normal or the load resistance increases suddenly, the system triggers a snag alert or stops movement. This immediate stop minimizes the impact of the snag and reduces the potential for damage to the crane, load, and surrounding infrastructure. Snag prevention systems often include visual and audible alerts to notify the operator of the snag condition. This allows the operator to take appropriate action, such as adjusting the crane's position or releasing the load if necessary. Snag prevention can reduce downtime and maintenance costs associated with snag-related incidents.
