A telehandler or telescopic handler is a versatile piece of equipment primarily used for lifting, moving, and positioning materials. It combines the functionality of a forklift and a crane, offering extended reach capabilities along with lifting capacities. The telescopic arm, commonly known as the boom, can extend and retract, enabling operators to access and move materials at various heights and distances. The telehandler can be fitted with various attachments, such as forks, buckets, or winches, making it capable of performing a wide range of tasks.

While telehandlers have become indispensable pieces of equipment, offering versatility and efficiency in various material handling tasks at construction sites; however, within this category of access and lifting equipment, there exists a specialized variant known as the rotating telehandler, which provides additional functionalities and capabilities. Getting into a rotating telehandler has the benefit of being three machines in one. Not only does it move materials with forks like a regular telehandler, but it works equally as a crane and also as an aerial work platform.

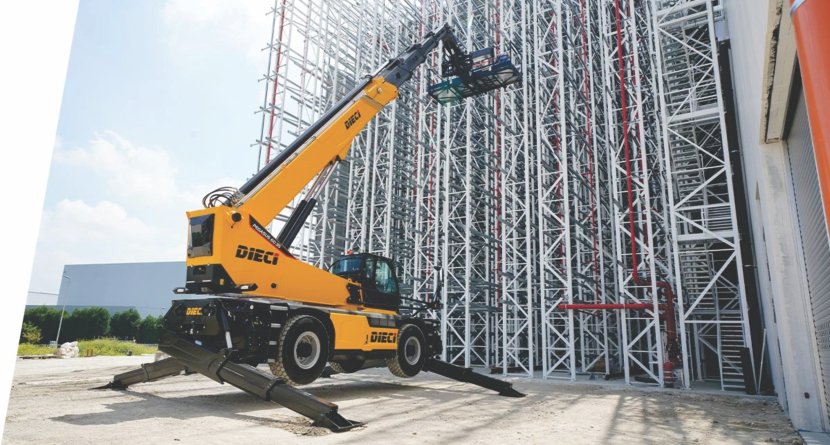

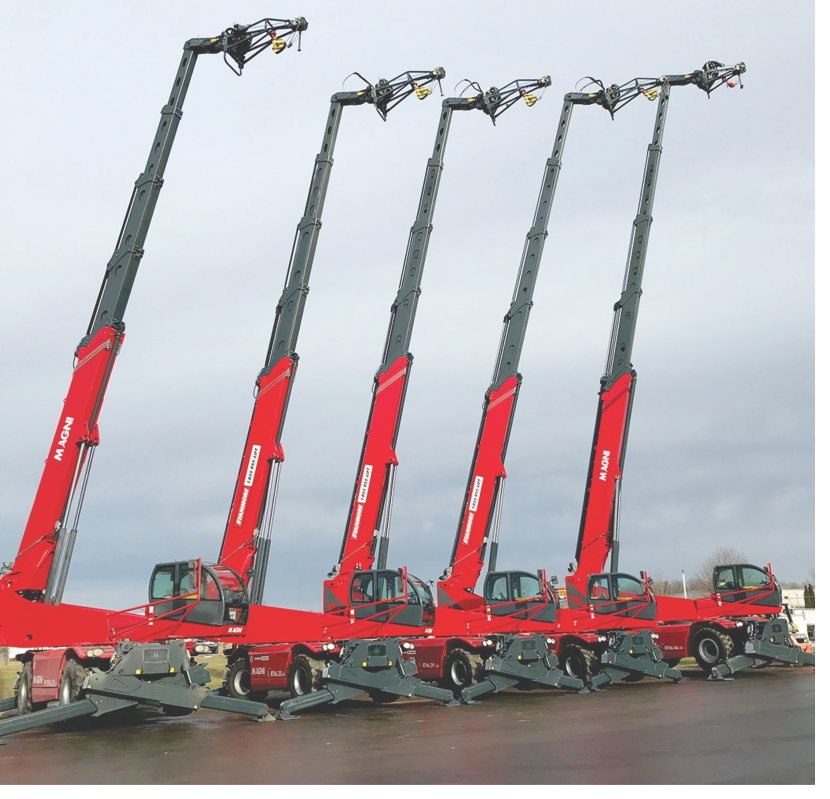

The rotating telescopic telehandler is a more recent invention, and it has helped take construction to the next level with unmatched efficiency and reach. Rotating telehandlers, as their name suggests, are able to rotate their booms 360 degrees giving maximum flexibility. Rotating telehandlers have a turret or turntable at the top of the chassis that can rotate a full 360 degrees independently from the chassis itself. The rotating turret provides a high degree of flexibility, making it easier to handle materials in tight or confined spaces and to reach around obstacles.

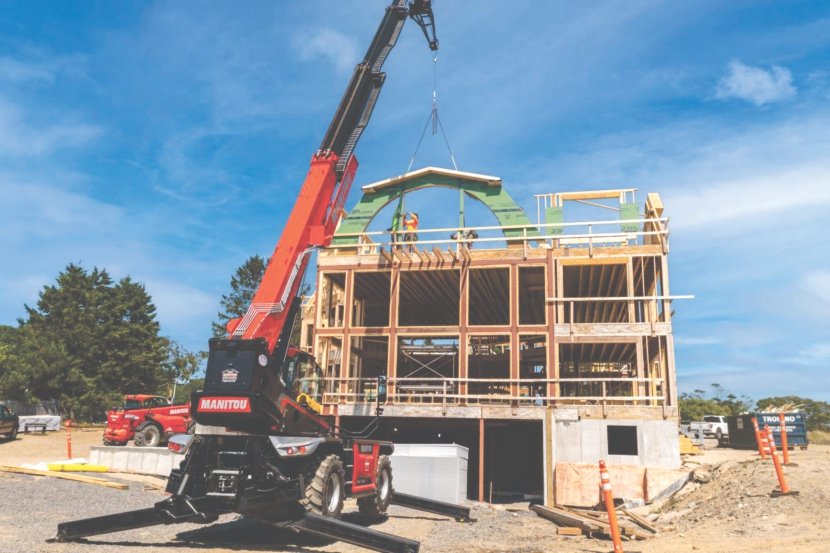

While rotating telehandlers are suitable for work on all construction jobsites, they excel in a few areas: more confined urban jobsites, jobsites with varying terrain and obstacles, and jobsites where materials need to be lifted to heights that may exceed what is possible with a traditional telescopic telehandler.

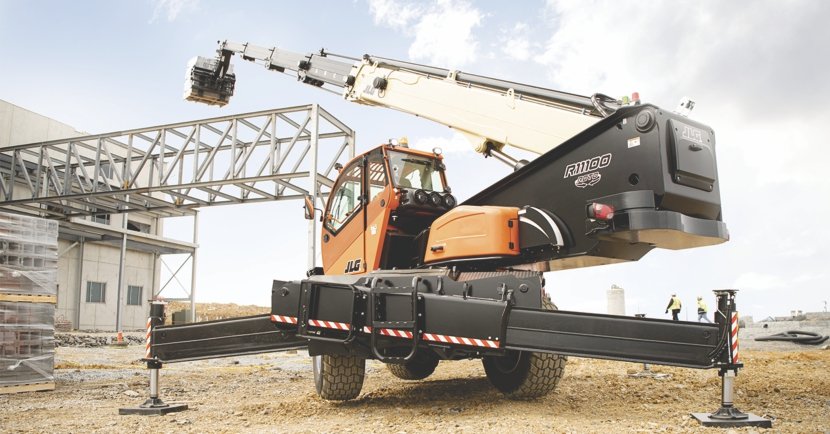

In construction, rotating telehandlers typically are designed with two separate sections of the machine. The lower section contains a four-wheel-drive chassis that holds the engine, travel system, outriggers, and fuel and hydraulic tanks. The upper section, or turret, carries the operator’s cab and boom. The two sections are connected by a large swing bearing that enables the turret to rotate through 360° an unlimited number of times. The hydraulic system passes through a hydraulic swivel, and the electrical system uses an electrical collector so that the systems can operate while the turret rotates. Because of their ability to pick and place loads in a complete circle around the machine, rotating telehandlers have outriggers both at the front and the rear of the chassis to provide a stable lifting foundation with the boom in any position.

One of the primary distinctions between a rotating telehandler and a conventional telehandler lies in the rotation capability. This rotational feature significantly enhances the maneuverability and versatility of the machine, enabling operators to access materials from multiple angles and positions without the need for repositioning the equipment. This saves time and minimizes the wear and tear on the job site terrain, ultimately contributing to a smoother workflow and faster task completion.

The ability to rotate the telehandler’s boom offers several advantages in various applications. For instance, in construction projects involving tasks such as loading and unloading materials, placing structural components, or working in confined spaces, the ability to precisely position the load without repositioning the machine can significantly improve efficiency and productivity. Additionally, their capability also allows operators to reach over obstacles or around obstacles, reducing the need for additional equipment or manual labour.

Another key difference between a rotating telehandler and a conventional telehandler is the increased lift capacity and reach offered by the former. Rotating telehandlers typically feature larger booms and higher lifting capacities compared to standard telehandlers, allowing them to handle heavier loads and reach greater heights. This enhanced performance makes rotating telehandlers particularly well-suited for applications where heavy lifting or extended reach is required, such as in high-rise construction projects or when working in challenging terrain.

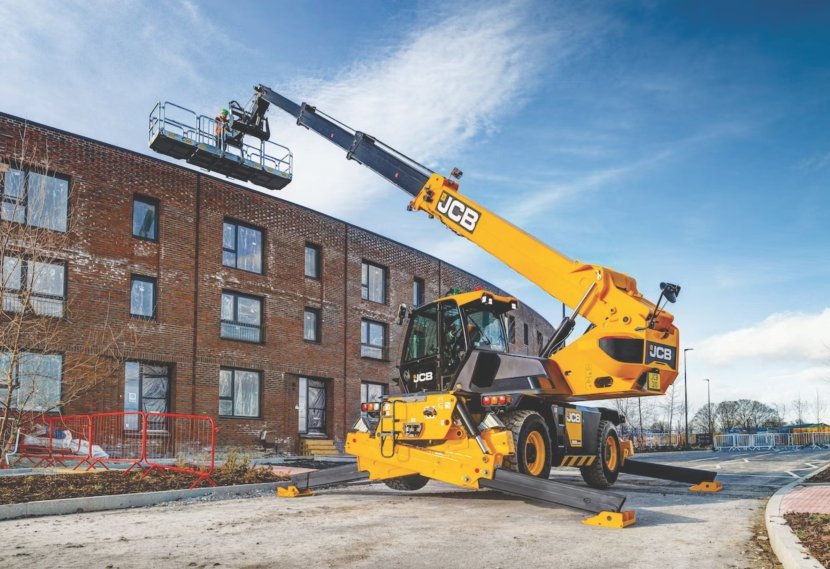

Rotating telehandlers are engineered to handle a diverse range of tasks, and this flexibility is largely thanks to their attachments. From fork tines for traditional lifting to specialized buckets for moving materials, each addition expands the functionality of the equipment. Other popular attachments include winches, jibs, and carriages, which can convert the rotating telehandler into a mobile crane, an aerial work platform, or even a tool-carrying device. Selecting the right attachments and accessories maximizing the efficiency and versatility of the rotating telehandler.

Equipment acquisition and ownership costs are a crucial consideration, and rotating telehandlers do have higher price than their drive-and-place counterparts. That increase in upfront cost can be made up over time through increased efficiency and versatility. The increased versatility of rotating telehandlers allows operators to handle a broader range of tasks with a single machine, eliminating the need for multiple specialized machines on site. The rotating telehandler’s ability to tackle many tasks can reduce capital expenditure and maintenance costs associated with maintaining a fleet of different machines. Additionally, their improved efficiency and productivity can result in faster completion of tasks, reducing labour costs and increasing overall profitability.

The rotating telehandler is transforming the way material is handled, offering unrivaled versatility and efficiency. Through enhanced efficiency and versatility, rotating telehandlers offer improved productivity - arguably the most important goal on the job site. The rotating telehandler effectively becomes a multi-purpose tool that can lift, shift, and place materials with unparalleled accuracy.

Despite their numerous advantages, rotating telehandlers also have some limitations and considerations that need to be taken into account. Due to their larger size and increased complexity compared to standard telehandlers, they may require additional training and expertise to operate safely and effectively. Additionally, the rotational feature introduces potential hazards, such as the risk of collisions or entanglement with nearby structures or equipment, which operators must be mindful of and take appropriate precautions to mitigate.
